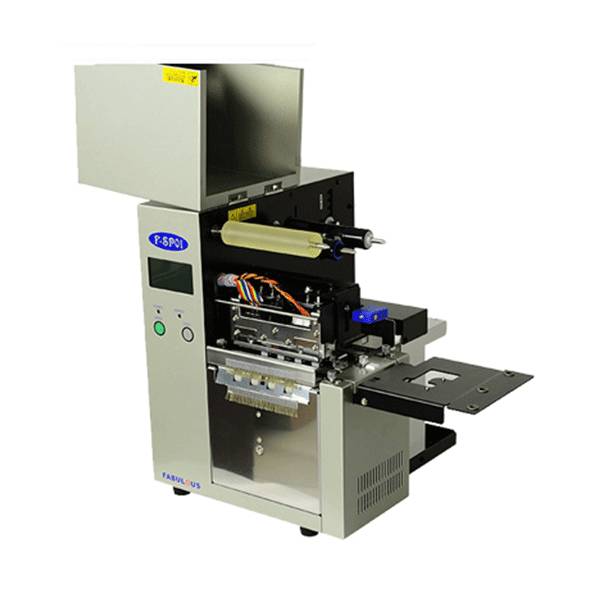

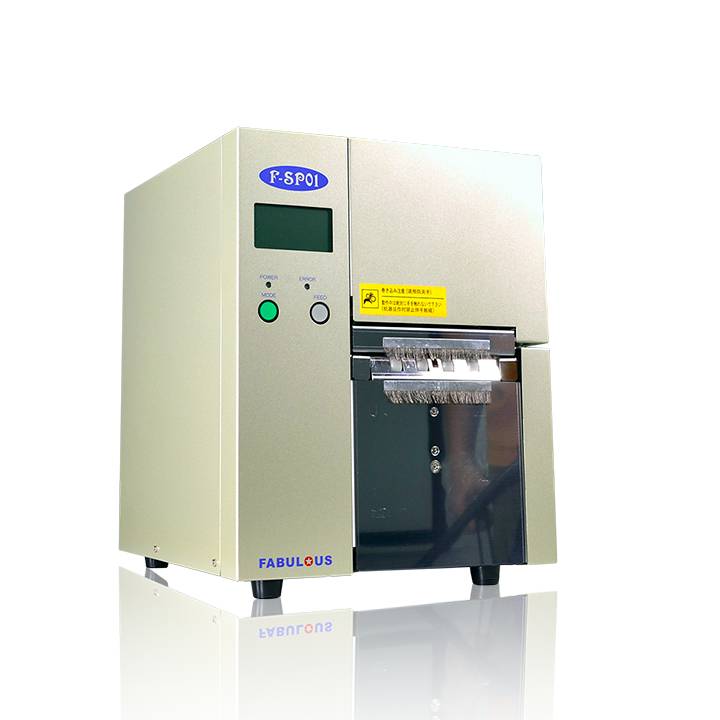

Single Tag Printer F-SP01
F-SP01 is a high-speed, high-resolution (300dpi) single tag printer, featuring thermal transfer ribbon saving and stable media feeding functions. It supports printing on various materials, with variable information printing capabilities, and is widely used in clothing hang tags, commercial tags, ID cards, and other applications.
Printed clothing hang tag
Feature
• Available for various materials
Various material type: E.g. Garment hangtag, tickets, cards, plastic cards Support printing on thick materials.
• High economical ribbon saving
Ribbon saving function: Effectively reduce production cost, ribbon waste could be minimized up to 10mm.
• High speed & High quality printing
64-bit RISC CPU max. printing speed up to 250 mm/s. High cost efficiency, Resolution up to 300dpi, and provide high stability and quality.
• Easy Control and User Friendly
Refilling without pausing the machine when out of material. Eliminate complicated operations.
Specification
| Printing method | Thermal transfer / Direct thermal |
| Printing resolution | 305dots/inch(12dot/mm) |
| Printing speed(Max.) | Equaling to 300mm / sec(designate the paper and transfer ribbon when using) |
| Printing width(Max.) | 100mm |
| Media width | 25mm ～ 100mm |
| Media length | 30mm ～ 210mm |
| Media thickness | 80g / m2 ～ 420g / m2(Paper) |
| Specification of thermal transfer ribbon | Length of thermal transfer ribbon: 300m(Max.). Direction of coil: inward coil / outward coil Inner diameter of paper core: 25.4mm ± 3mm Type of thermal transfer ribbon: side pressed or suspended pressed ribbon. The users are suggested to use the type produced by the original factory or conduct feasibility before use |
| Specification of media holder | 110mm (width), 100mm (height) |
| Separation mode | Friction roller separation method |
| Interface | USB 2.0, RS232 |
| Power supply | AC 220V ± 10%, 50/60Hz ± 2Hz |
| Size | 28.5cm × 30.5cm × 36cm |
| Weight | 16.5 kg |
| Temperature | 5℃~35℃ |
| Humidity | 35%~85% |
Application
Manufacturing
• Work-in-process
• Product ID/serial numbers
Garment
• Clothing hang tag
• Price taggling
Transportation and Logistics
• ticket
• Compliance labeling
Healthcare
• Asset tracking
• Unit-dose labeling
• Pharmacy labeling
Retail
• Return tagging
• Price taggling

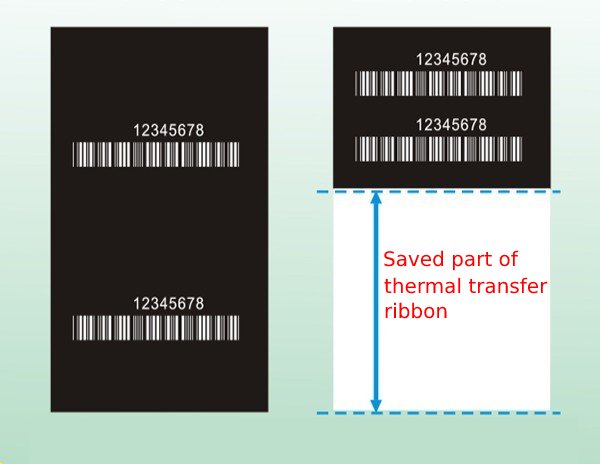

Thermal transfer ribbon saving function
The left is the thermal transfer ribbon used by a printer without the ribbon saving function, the right is the thermal transfer ribbon used by SP-01 with the ribbon saving function
